Movement 329

Animation not supported.

This browser does not support the Canvas element, required by our animation library. To view the animations, please upgrade to the latest version of Google Chrome, Firefox, or Internet Explorer.

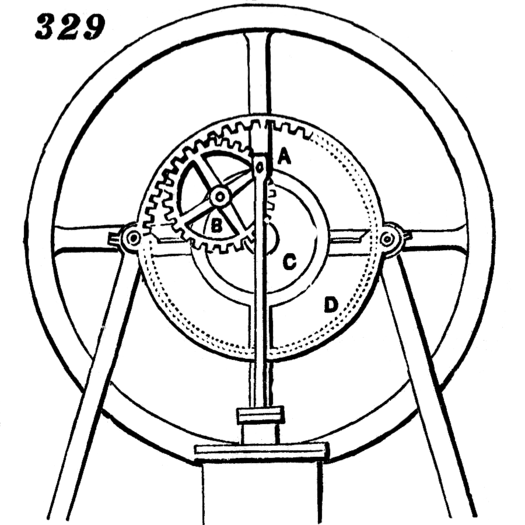

329. A piston-rod guide. The piston-rod, A, is connected with a wrist attached to a cog-wheel, B, which turns on a crank-pin, carried by a plate, C, which is fast on the shaft. The wheel, B, revolves around a stationary internally toothed gear, D, of double the diameter of B, and so motion is given to the crank-pin, and the piston-rod is kept upright.


In our animation we have replaced the circular “plate C” with a crank arm in order to more clearly illustrate its motion.
