Movement 324

Animation not supported.

This browser does not support the Canvas element, required by our animation library. To view the animations, please upgrade to the latest version of Google Chrome, Firefox, or Internet Explorer.

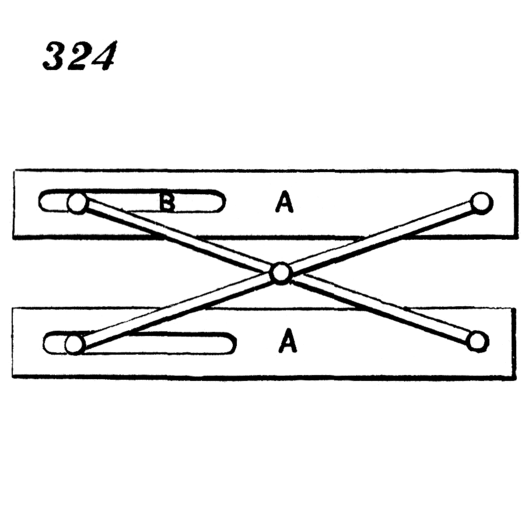

324. Compound parallel ruler, composed of two simple rulers, A, A, connected by two crossed arms pivoted together at the middle of their length, each pivoted at one end to one of the rulers, and connected with the other one by a slot and sliding-pin, as shown at B. In this the ends as well as the edges are kept parallel. The principle of construction of the several rulers represented is taken advantage of in the formation of some parts of machinery.
